Industry Standard CLI with 10G SFP+ stacking

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.

Max PoE with budget up to 740W

PoE lets you simplifying deployments with IP cameras, VoIP phones, wireless access points, and other PoE powered devices. The DGS-1510-52XMP gives you 370W power budget. Or utilize a total of 740W when adding a DPS-700 redundant power supply to the DGS-1510-52XMP.

Fully‑Featured with Layer 3 Traffic Management

The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.

10G SFP+ Stacking

Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.¹

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.

Free Network Design and Management Software

D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy‑Saving Design

D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.

When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.

Specifications

1000Base-T PoE Interface	48
10G SFP+ Interface	4
Auto MDI/MDIX	Yes
Console Port	Yes
10/100/1000BASE-T PoE ports	48
10G SFP+ ports	4
Switch Capacity	176 Gbps
Max. Packet Forwarding Rate	130.95 Mpps
Dimension	440mm x 308.50mm x 44mm
Weight	5.41 kg
Operation Temperature	-5 -50°C
Storage Temperature	-20-70°C
Operation Humidity	0% ~ 95% RH
Storage Humidity	0% ~ 95% RH
Maximum Power Consumption	486.9 W (PoE on) <br>58.8 W (PoE off)
Maximum Heat Dissipation	1660.33 BTU/hr
Standby Power Consumption	40.1 W
Acoustic	55.4 dB(A)
MTBF	303,027 hours
Power Input	100 - 240 VAC



Packet Buffer Size	3MB

Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
Power Saving By Link Status	Yes
Power Saving By LED Shut-Off	Yes
Power Saving By Port Shut-Off	Yes
Power Saving By System Hibernation	Yes
Time-based PoE	Yes
Maximum PoE Budget	370W
PD Alive	Yes
PoE Budget	370 W
Physical Stacking	Yes
Physical Stacking Bandwidth	40 G
Units Per Physical Stack	6
D-Link Single IP Management (SIM)	Yes
Units Per SIM Stack	32
MAC Address Table Size	16384
Black Hole MAC Address	Yes
802.3x Flow Control	Yes
Head-of-line (HOL) Blocking Prevention	Yes
802.1D Spanning Tree (STP)	Yes
802.1w Rapid Spanning Tree (RSTP)	Yes
802.1s Multiple Spanning Tree (MSTP)	Yes
Root Restriction	Yes
G.8032 ERPS	Yes
802.1AX Link Aggregation	Yes
802.3ad Link Aggregation	Yes
Link Aggregation Group Per Device	32
Max Port Per Link Aggregation Group	8
Port Mirroring	Yes
Flow-based (ACL) mirroring	Yes
Jumbo Frame	9216
Loopback Detection (LBD)	Yes
IGMP Snooping	Yes
Max IGMP Snooping Groups	512
IGMP Snooping Fast Leave	Yes
IGMP Proxy Reporting	Yes
MLD Snooping	Yes
MLD Snooping Groups	Yes
MLD Snooping Fast Leave	Yes
MLD Proxy Reporting	Yes
802.1Q VLAN	Yes
VLAN Groups	4094
Port-based VLAN	Yes
802.1v Protocol-based VLAN	Yes
MAC-based VLAN	Yes
Voice VLAN	Yes
Auto Surveillance VLAN	Yes, 2.1
GVRP	Yes
Asymmetric VLAN	Yes
IP Interface	Yes
Max Number of IP Interface	16
ARP	Yes
ARP Entries	512
Gratuitous ARP	Yes
ND Entries	Yes
UDP Helper	Yes
Default Route	Yes
Static Route	Yes
Number of Queue	8
Class of Service (CoS)	Yes
Remark 802.1p priority	Yes
Remark ToS/DSCP	Yes
Rate Limiting	Yes
Queue Handling	Yes
Strict Priority Queue (SPQ)	Yes
Weighted Round Robin (WRR)	Yes
Deficit Round Robin (DRR)	Yes
SPQ + WRR	Yes
Port-based Bandwidth Control	Yes
Max Access Control List (ACL) Entries	Yes
MAC Access List	Yes
IP Access List	Yes
IPv6 Access List	Yes
Time based ACL	Yes
SSH	Yes
SSL	Yes
Port Security	Yes
Broadcast/Multicast/Unicast Storm Control	Yes
Traffic Segmentation	Yes
IP Source Guard	Yes
DHCP Snooping	Yes
IPv6 Snooping	Yes
Dynamic ARP Inspection (DAI)	Yes
DHCPv6 Guard	Yes
IPv6 ND Inspection	Yes
IPv6 Route Advertisement (RA) Guard	Yes
Duplicate Address Detection (DAD)	Yes
D-Link Safeguard Engine	Yes
DHCP Server Screening	Yes
ARP Spoofing Prevention	Yes
BPDU Attack Protection	Yes
DoS Attack Prevention	Yes
Port based 802.1X Authentication	Yes
802.1X	Yes
Host based 802.1X Authentication	Yes
Identity Driven 802.1X Policy Assignment	Yes
Web-based Access Control (WAC)	Yes
Port based WAC Authentication	Yes
Host based WAC Authentication	Yes
Japanese Web-based Access Control (JWAC)	Yes
Identity Driven WAC Policy Assignment	Yes
Port based JWAC Authentication	Yes
Host based JWAC Authentication	Yes
Identity Driven JWAC Policy Assignment	Yes
MAC-based Access Control (MAC)	Yes
Port based MAC Authentication	Yes
Host based MAC Authentication	Yes
Identity Driven MAC Policy Assignment	Yes
Compound Authentication	Yes
Guest VLAN	Yes
Authentication for Management Access	Yes
Privilege Level for Management Access	5
TACACS+	Yes
RADIUS Accounting	Yes
RADIUS	Yes
TACACS+ Accounting	Yes
Cable Diagnostics	Yes
Optical Transceiver Digital Diagnostic Monitoring (DDM)	Yes
Network Time Protocol (NTP)	Yes
Simple Network Time Protocol (SNTP)	Yes
Web-based GUI	Yes
Command Line Interface (CLI)	Yes
Telnet Server	Yes
Telnet Client	Yes
SNMP	Yes
SNMP Trap	Yes
TFTP Client	Yes
ZModem	Yes
System Log	Yes
RMONv1	Yes
LLDP	Yes
LLDP-MED	Yes
D-Link Discover Protocol (DDP)	Yes (v0.25)
DHCP/BootP Client	Yes
DHCP Auto-configuration	Yes
Flash file system	Yes
DHCP relay	Yes
Multiple Images	Yes
Multiple Configurations	Yes
Editable Login Banner	Yes
Editable System Prompt	Yes
DNS Client	Yes
Debug Command	Yes
Password Encryption	Yes
Ping	Yes
Traceroute	Yes
sFlow	Yes
D-Link Network Assistant	Yes
Smart Wizard	Yes
SSH	Yes
SSL	Yes
Store-and-Forwarding	Yes

For more information on our business-class solution, reseller pricing, distribution availability, and partner program please reach out to our commercial sales team at 800-354-6522 or dlinkforbusiness@dlink.ca

DGS-1510 Series L2+ Smart Managed Stackable Gigabit Switches

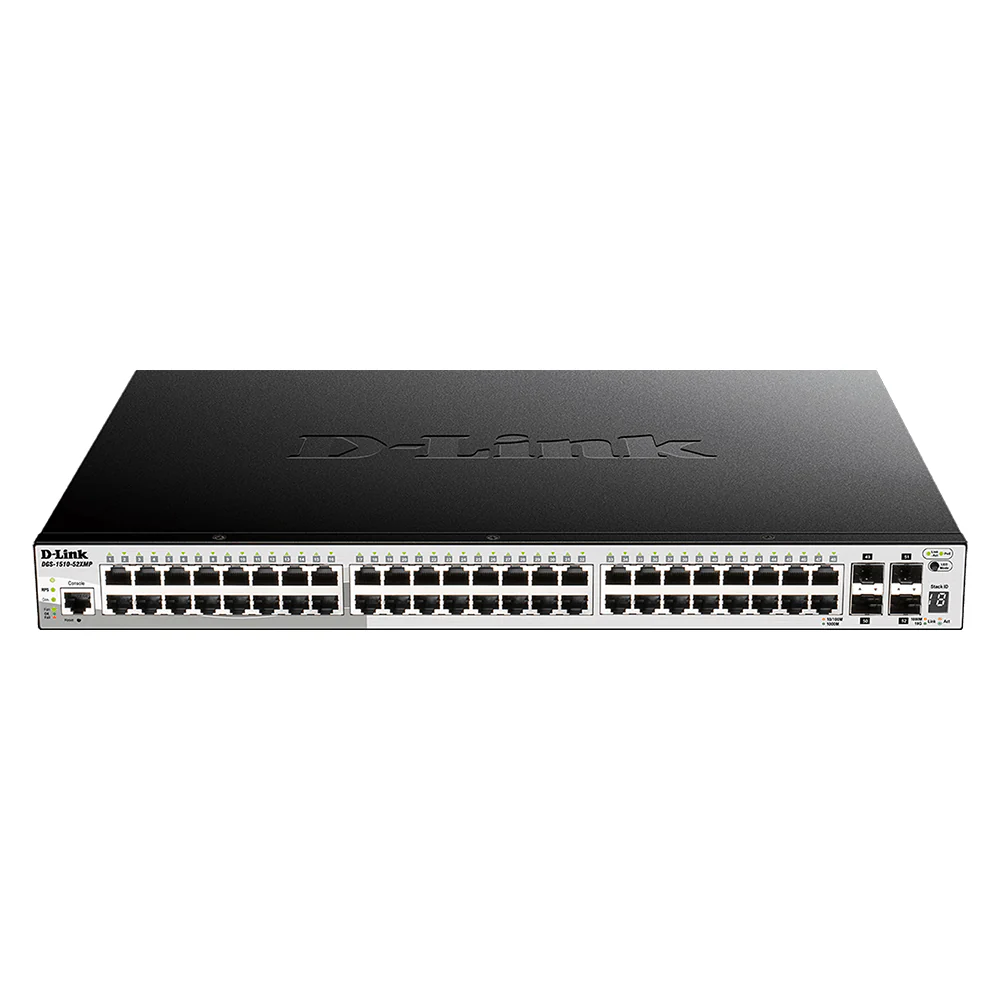

48-Port Gigabit Stackable Smart Managed PoE (370W) Switch with 10G Uplinks - DGS-1510-52XMP
