Quickly set up a fast, reliable, and efficient wired network in your home or office

5 high-speed Fast Ethernet ports
Plug and play technology for simple setup
IEEE 802.3x flow control, RoHs compliant to enhance network reliability
Innovative D-Link Green energy saving features
Compact design for convenient placement
Fanless design for silent operation

Effortless High Speed Networking

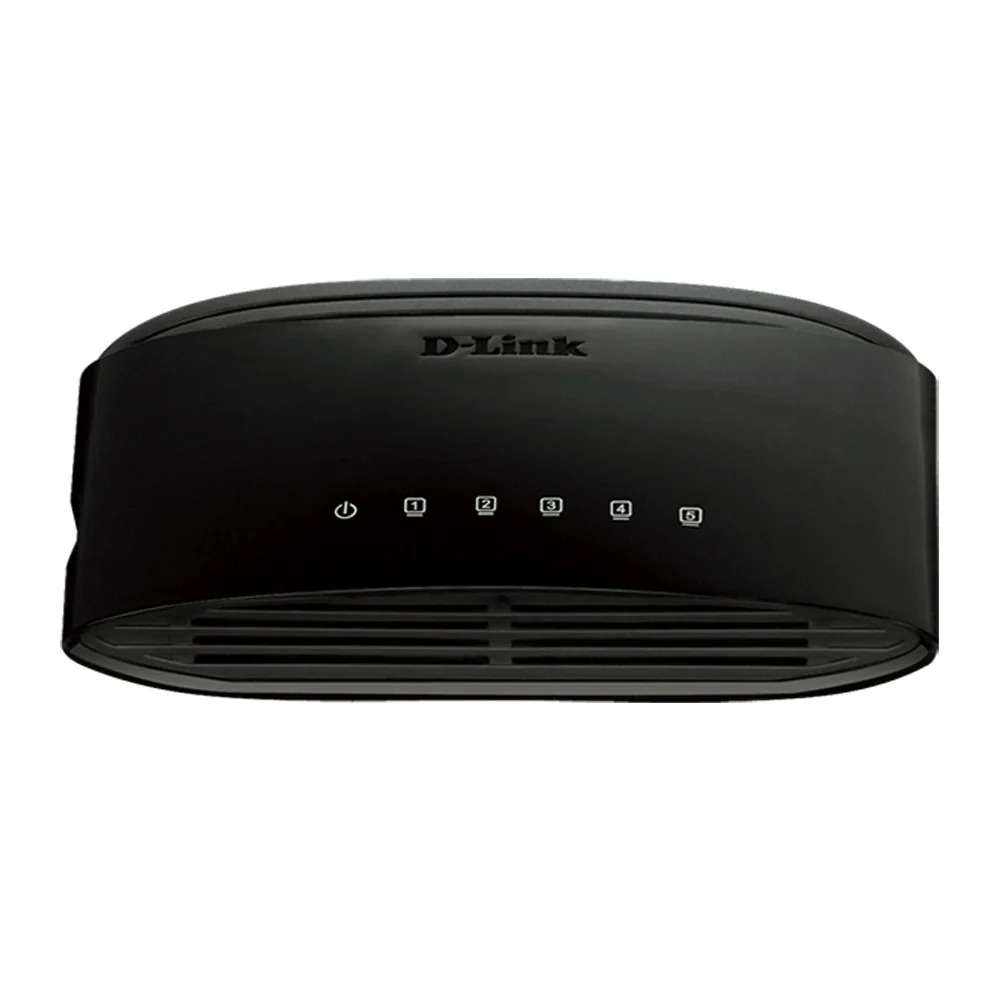

The DES-1005E features easy access, auto sensing 10/100 Mbps Ethernet ports with an LED indicator for each port to quickly distinguish link status and activity. The DES-1005E switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.

Think Green

The DES-1005E 5-Port Fast Ethernet Switch is part of D-Link’s series of home devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Conserves Energy

The DES-1005E helps conserve energy automatically. The switches save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly

The DES-1005E is designed with the environment in mind. It's compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Specifications

100Base-TX Interface	5
Auto MDI/MDIX	Yes
Switching Capacity	1 Gbps
Max. Packet Forwarding Rate	0.74Mpps
Store & Forwarding Forwading	Yes
Dimension	104 x 59.5 x 27.22
Weight	0.054 kg
Operation Temperature	0 to 40 ˚C
Storage Temperature	-10 to 70 ˚C
Operation Humidity	10% to 90% RH
Storage Humidity	5% to 90% RH
Maximum Power Consumption	1.6 W
Maximum Heat Dissipation	5.461 BTU/h
MTBF	1,623,329 hours
Acoustic	0 dB
Power Input	AC: 100 ~240V
Packet Buffer Size	0.5 KB
Fan	Fanless
Power Saving By Link Status	Yes
Power Saving By Cable Length	Yes
MAC Address Table	2,000
802.3x Flow Control	Yes
